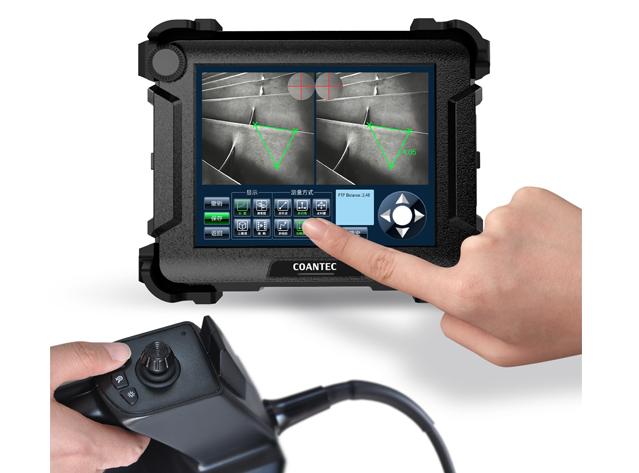

Electric joystick + touch screen virtual joystick

The electric joystick is matched with the touch screen virtual joystick to control the probe move accurately, providing a better control experience. Turn on the probe coordinate display function to observe the current bending angle of the probe in real-time. Users can also configure mechanical joystick as required.

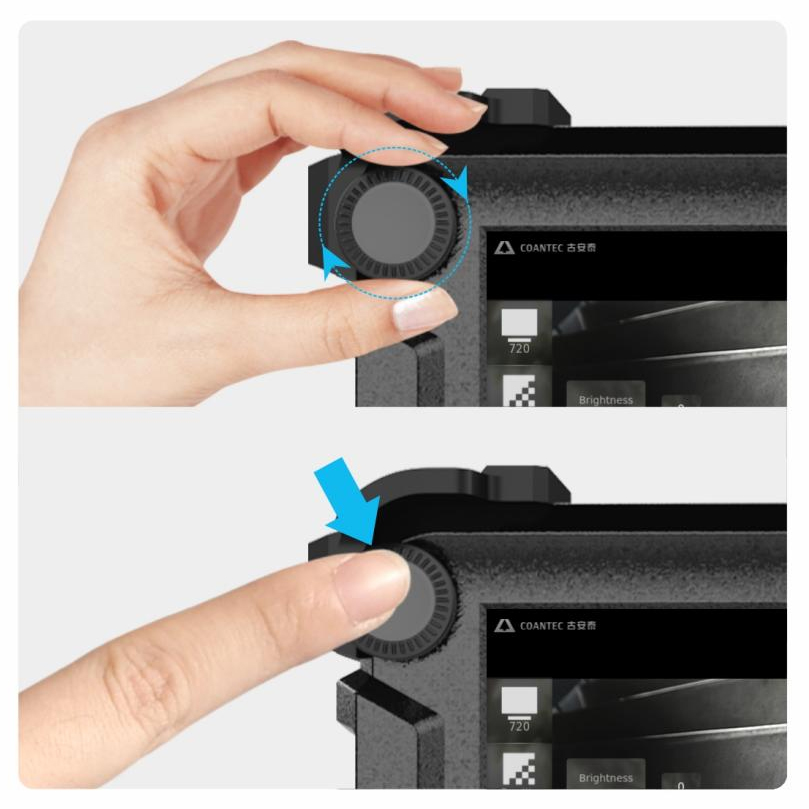

Knob type multifunction key

The unique design of knob type multifunctional key (patented) makes it easier to switch and set menu functions.

180° Rotatable stand

Equipped with 180 ° rotatable support, it can be suspended and supported, which is convenient to adjust the observation angle, and is suitable for various detection scenes.

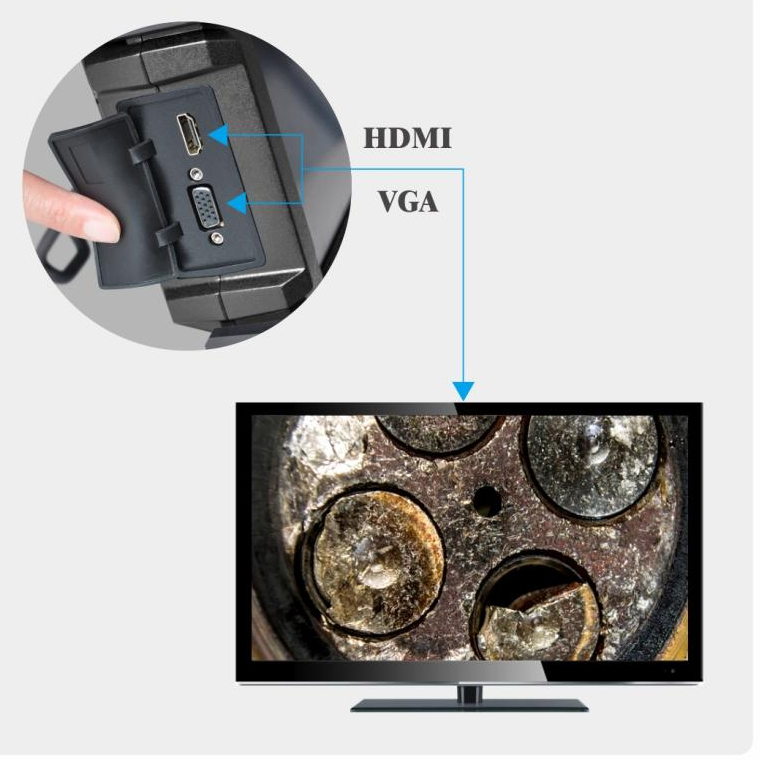

VGA/HDMI Same screen output

The external display screen can be connected through VGA interface (optional) or HDMI interface (standard), which is convenient for multi person consultation and more conducive to accurate judgment of on-site conditions.

Real time image comparison function

By comparing and observing the difference between the real-time detection image and the static image, it is more convenient to find and distinguish the possible surface defects of the detected object in time.

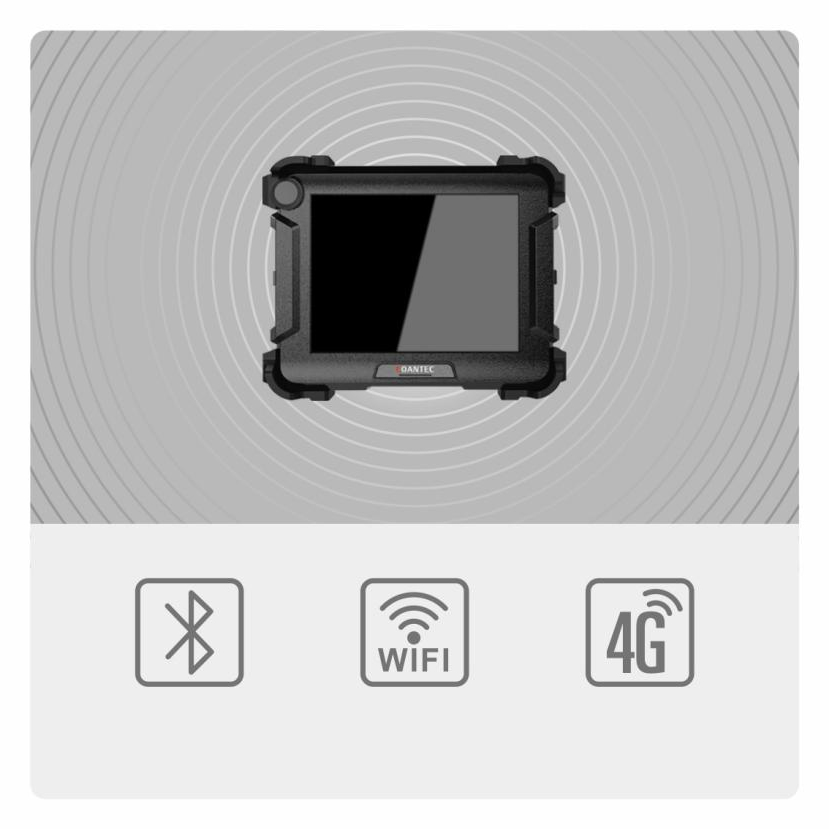

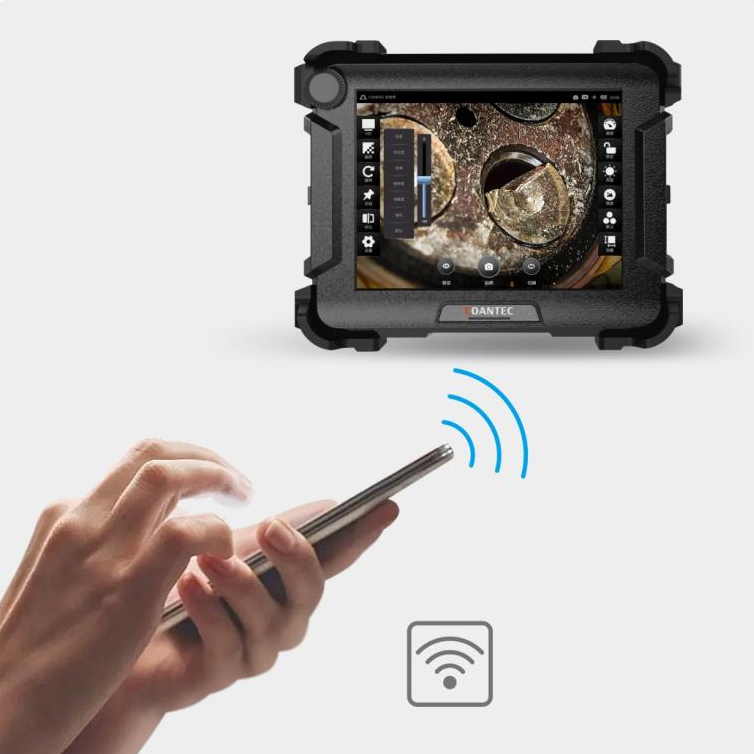

Built in wireless Bluetooth, 4G and WiFi modules

Built in wireless Bluetooth module to transfer pictures or video files more conveniently and quickly. Built in 4G and WiFi modules can upload and download data through wireless networking.

Remote control module (optional)

The expandable remote control module controls the host through the terminal to facilitate the effective transmission of information and remote and efficient cooperation.

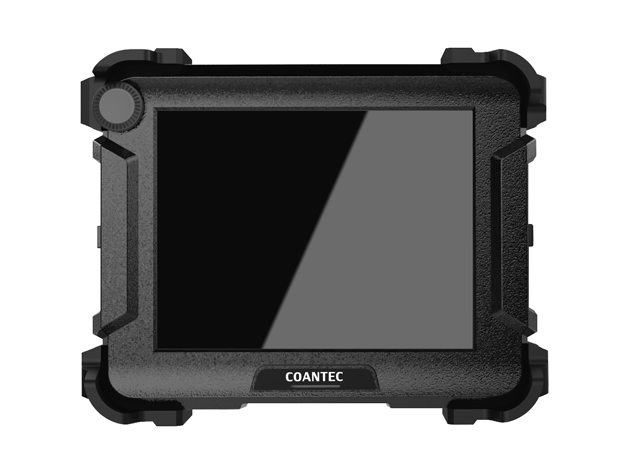

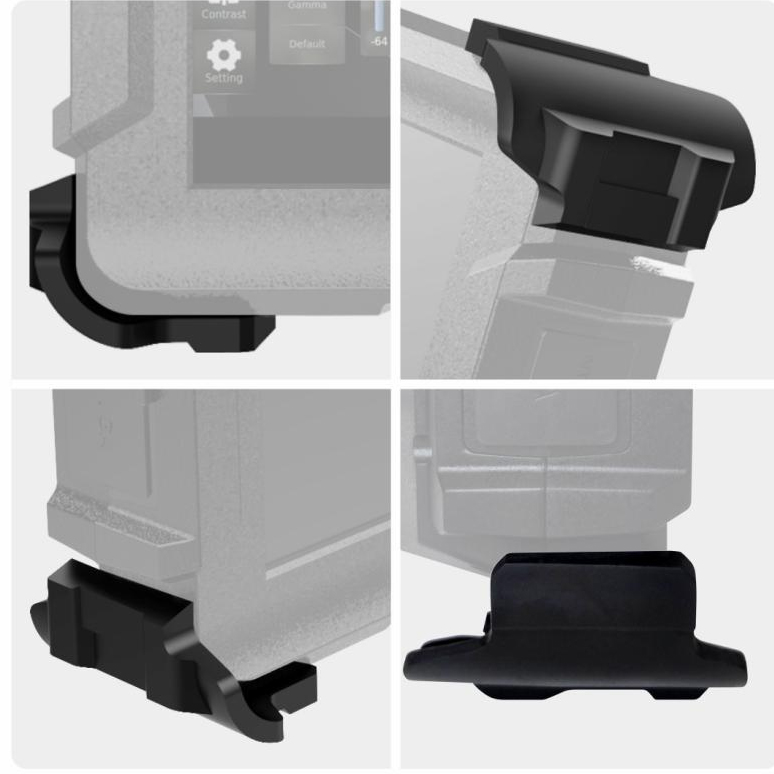

Four corner TPU rubber coated anti-collision design

The four corners of the host adopt TPU rubber coated anti-collision design, with round and beautiful appearance, more shock and fall resistance, effectively strengthening the protection of the equipment, and more durable.

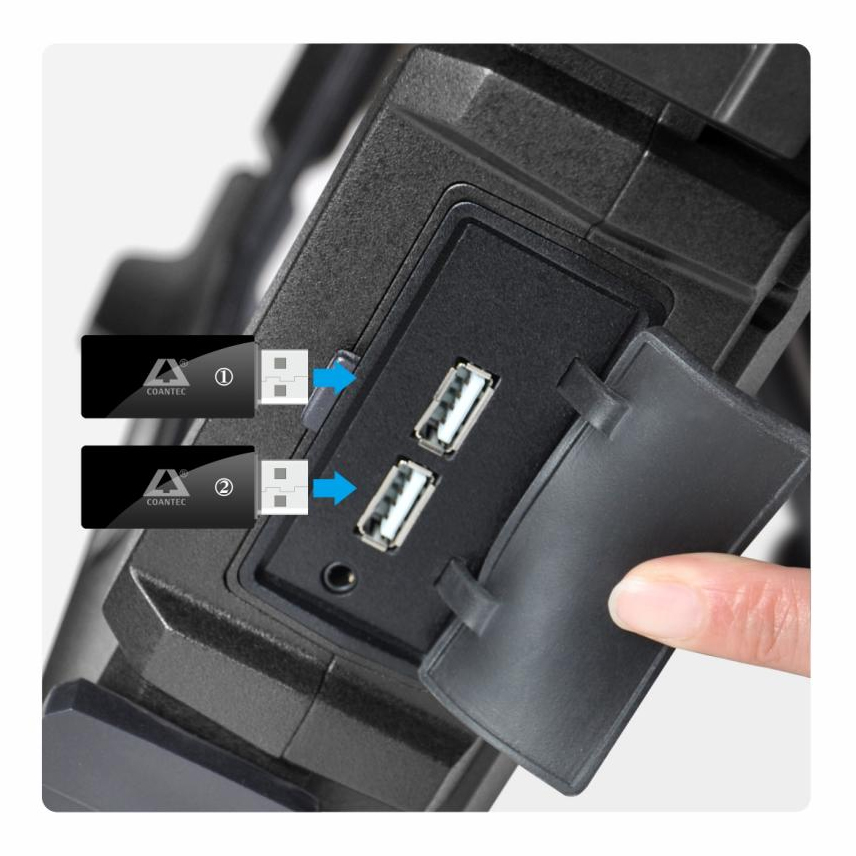

Expandable large storage space

The host memory is 2GB, and the standard storage space is 16GB, which can be expanded to 64GB, with larger storage space and faster access speed. Equipped with 2-way USB interface, data can be stored through external USB disk.

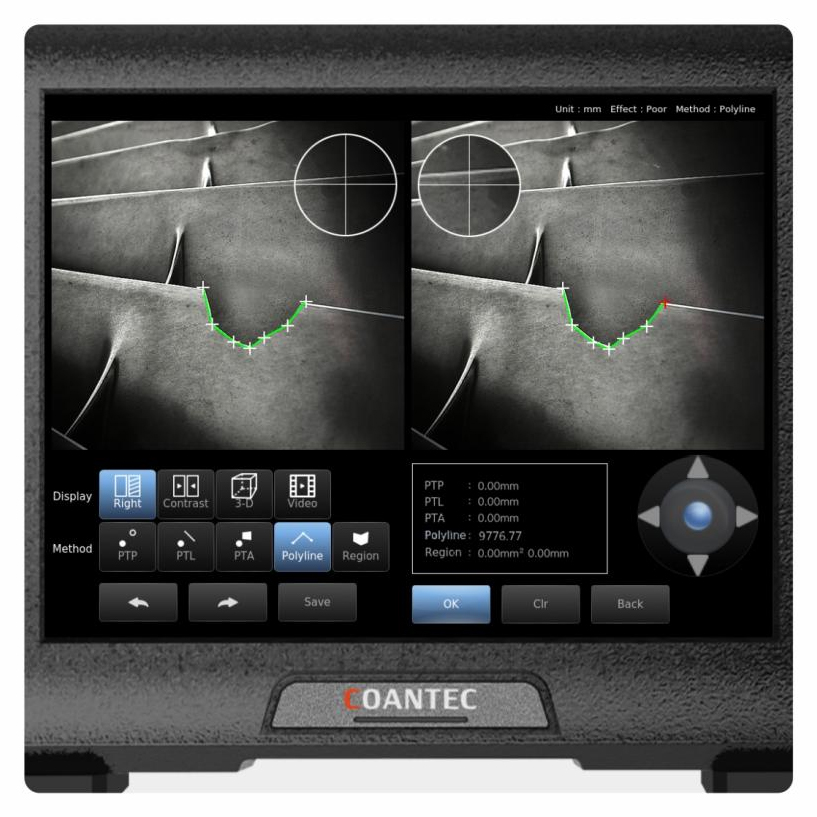

3D measurement function (premium version)

The binocular stereo imaging measurement system can measure the distance from point to point, point to line and point to surface (depth), as well as the length of multi line segments and the area of closed graphics. The measurement accuracy can reach 0.01mm and the error is ≤ 5%

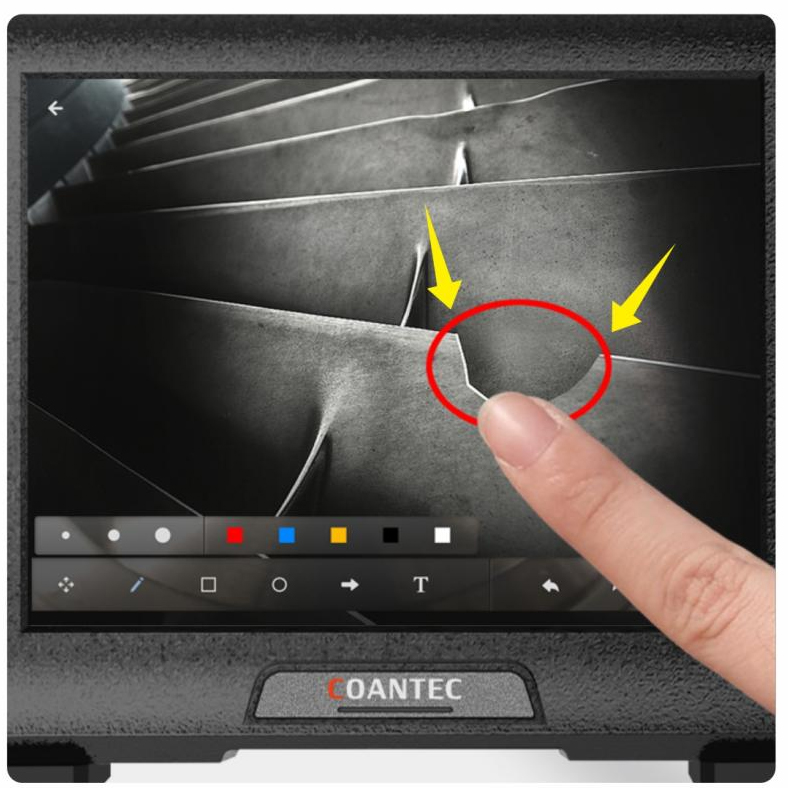

Picture editing function

Text and graphic notes can be added to the picture, such as full screen text mark, graffiti overlay, handwritten lines, arrows, boxes, circular signs, text notes, etc

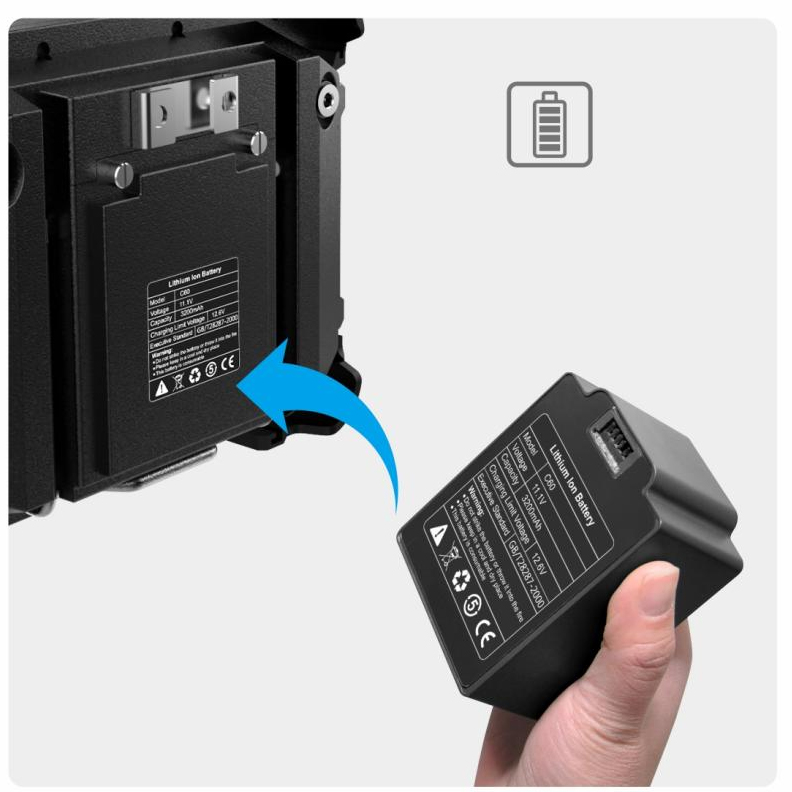

Super long service time

The replaceable high-capacity rechargeable lithium battery and charger are adopted to ensure the long-term service time.

Host system

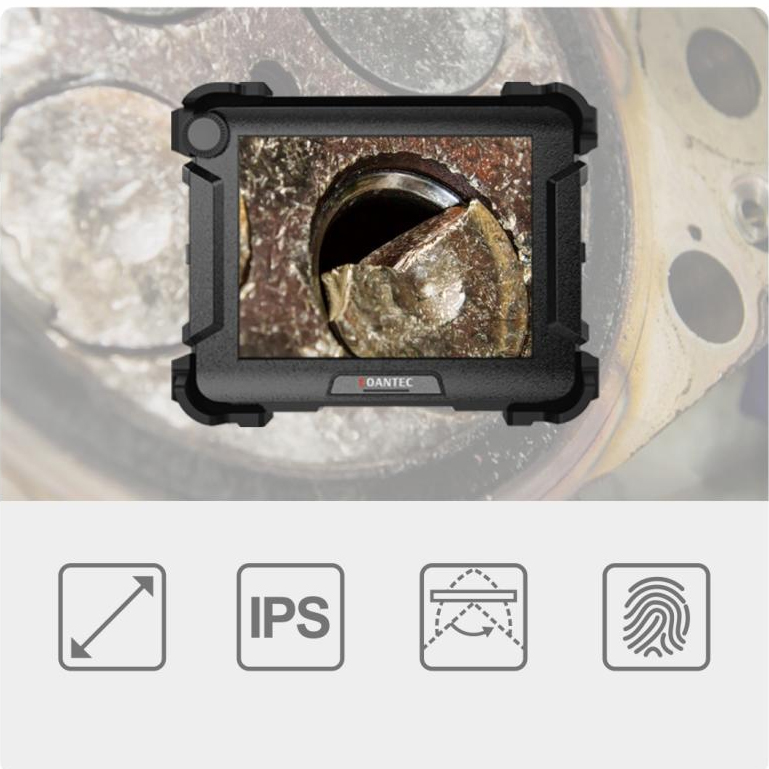

Display

Brand new IPS HD touch screen

Display size

8-inch

Display detachable

●

User interface

Use the touch screen,physical buttons,and joystick menus to navigate

Host storage capacity

The standard memory is 16GB and can be expanded to 128GB

Storage memory expandable

○

Host running memory

The standard running memory is 2GB and can be expanded to 4GB

Photography function

●

Image format

JPG/BMP

Video recording function

●

Video format

MP4

Real-lime image zoom

1-5 times through button or touchscreen

LED brightness adjustable

0-9 level

Image effect

Image brightness,contrast,hue,saturation,sharpness,gamma

Display brightness manual adjustment

●

Image mode

Default,monochrome,negative,bright,highlighted,or soft

Image rotation

●

Image freezing

●

Image mirroring

●

Image real-time comparison

●

Time watermark

●

Report generation

●

Ruler

None,circular ruler,cross ruler,or reference line

Bluetooth data transmission

●

WiFi data transmission

●

File operations

Full screen view/image/zoom/delete/rename/rotate/graffiti etc

Image Zoom

1-5 times(by button and touch screen)

Photo edit

Text annotation and graffiti functions(handwritten lines,arrows,boxes,round signs,text annotation,and can set the brush color and thickness)

User permission management

Administrator,Visitors,Standard user (created by administrator)

Menu/input method language

Simplified Chinese,English,Japanese,Korean,

French,German,Portuguese,Spanish,

Russian,Italian,Dutch and more than 10 other languages

3D measurement system（optional）

Length，Vertical, Depth, Multisegments, Area, Missing corner, Sectional,Circles

3D measurement accuracy

0.01mm

Measurement error

≤5%

Video live streaming

●

Online upgrade

●

Ingress Protection（host）

IP55

Output port

●

HDMI video output port

●

3.5mm audio port

●

USB 2.0 port*2

●

Dimensions

Host size

245mm*195mm*95mm

Packing size

551mm*351mm*240mm

Host weight（including battery）

2.85Kg

Operating handle

1.1Kg

Insertion tube

Tube diameter（±0.1mm）

0.95mm

Tube length: 1m-2m, no articulation

1.2mm

1.6mm

Tube length: 1m-3m, no articulation.

1.8mm

Tube length: 1m-3m.

360º All-Way tip articulation

2.0mm

2.8mm

3.0mm

3.9mm

4.8mm

6mm

Tube length:1m-10m available

360º All-Way tip articulation

8mm

C68 Pro

The 3D measurement function is only available for 4mm,6mm and 8mm

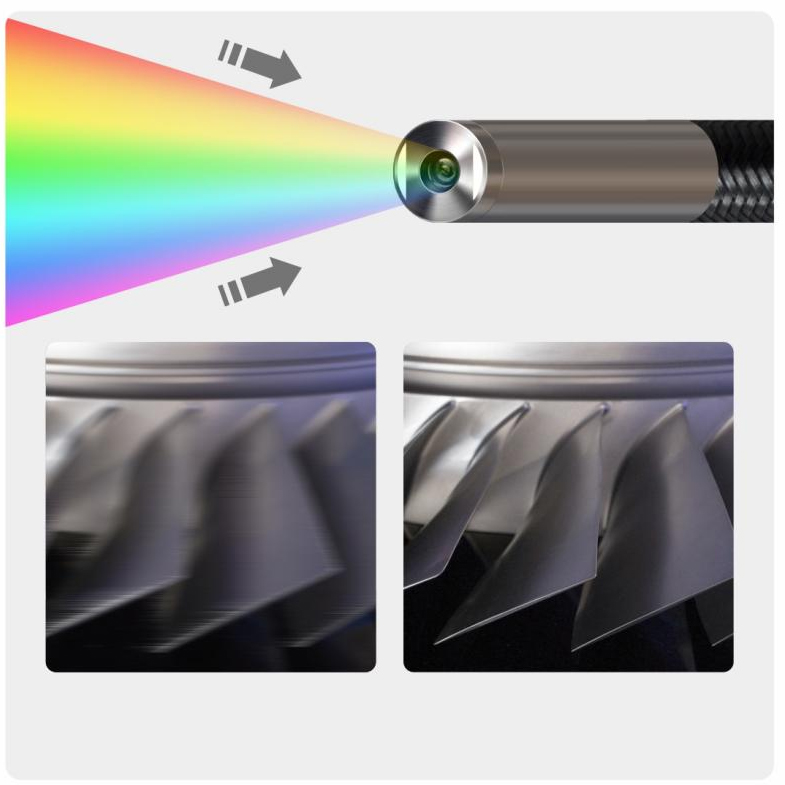

Depth of view（mm）

5-50/5-100/7-150*

View angle

70°/80°/100°/120°*

Camera pixels

160,000/300,000/1,000,000/2,000,000*

Tube replacement

●

Lens replacement

○

View direction

Front view/Side view/Front and Side view integrated

Light source

Front LED/Rear-mounted LED+fiber light guiding

360°all-way articulation

●

Probe bending angle

≥160°（eg：for 6mm 1m tube）

Joystick

Mechanical joystick

Motor-control joystick

Virtual joystick

-

●

Probe lock/release

-

●

Bending speed

-

Fast/Slow，3 level in each mode

Probe housing material

Super hard alloy protection case

Tube material

Tungsten wire wear-resistant braided tube

Ingress Protection(insertion tube)

IP67

Power supply

Input power

Input：220±10%V 50Hz

Output

Output DC:15V 6A

Battery capacity

Voltage:7.4V,Capacity:10000mAh

Continuous working time

Mechanical joystick:≥4h ,Motor-control joystick:≥6h

Operating environment

System operating temperature

-20°C~60°C

Tip operating temperature

-25°C~100°C(Over-Temperature Alarm optional)

Storage temperature

-40°C~60°C

Relative humidity

15%-90%

Accessories

Special instrument case

●

USB flash disk

●

Power adaptor

●

Pipe centralized

○

Battery pack

○

Battery charge

●

HDMI cable

●

Customization

Tube length,diameter,light source

○

Tube can be added with a scale

○

Software

○

Display size

○

Lens

○

*The specific parameters are subject to the actual product.Please contact to the sales for confirmation.
