Product details description
Coantec X3 series
High Performance Multifunctional Industrial Videoscope
● Mechanical-Controlled Handheld Integrated Design
● Compatible with Various Insertion Tube Specifications
● Quick-Release Tube Replacement Mechanism
● Supports Multiple Lighting Sources
● Interchangeable Camera tips
● Optional High-Frame-Rate Image Sensor
● Dual Power Supply with Extended Battery Life
● Optional High-precision 3D measurement function
● Large-capacity storage
1.Brief Introduction

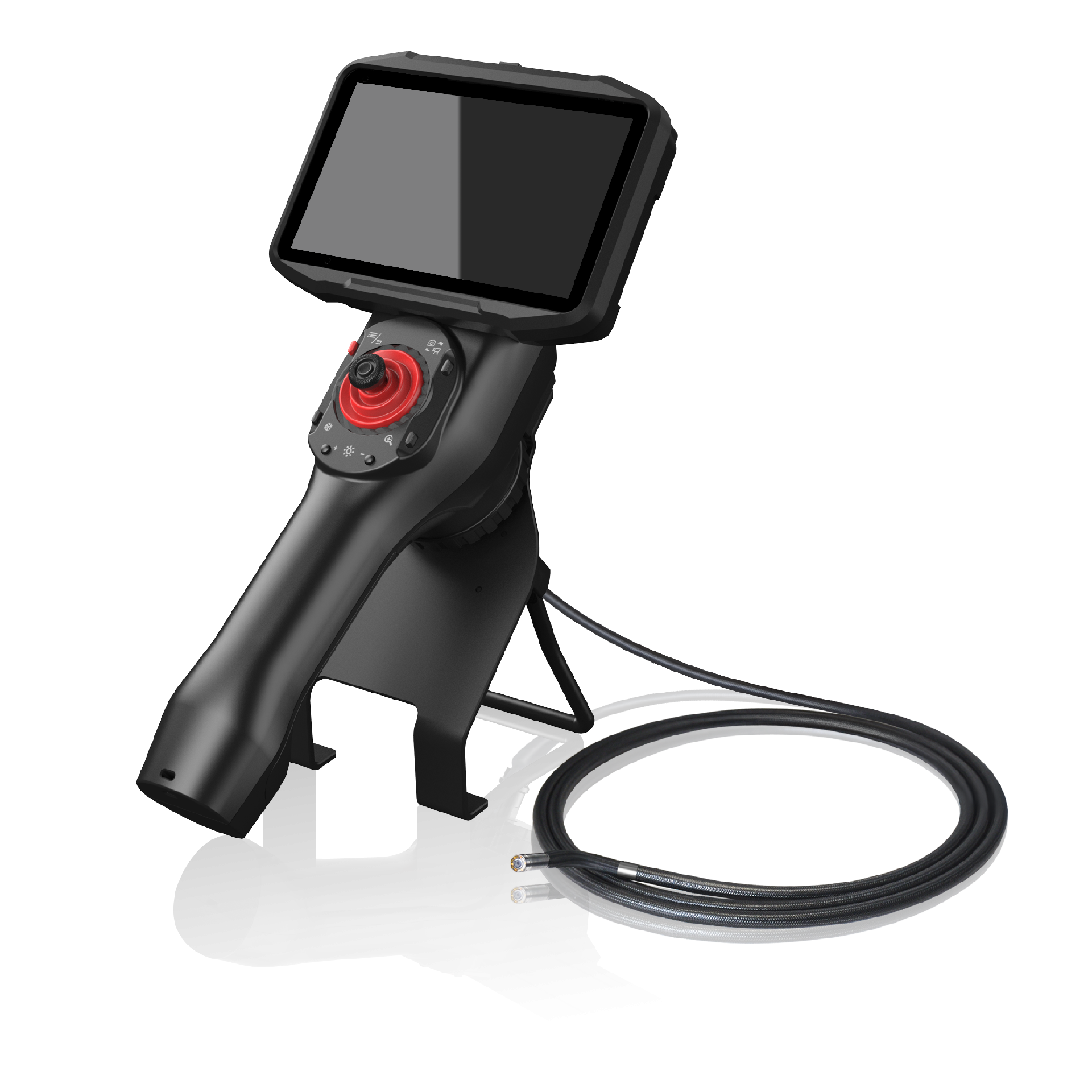

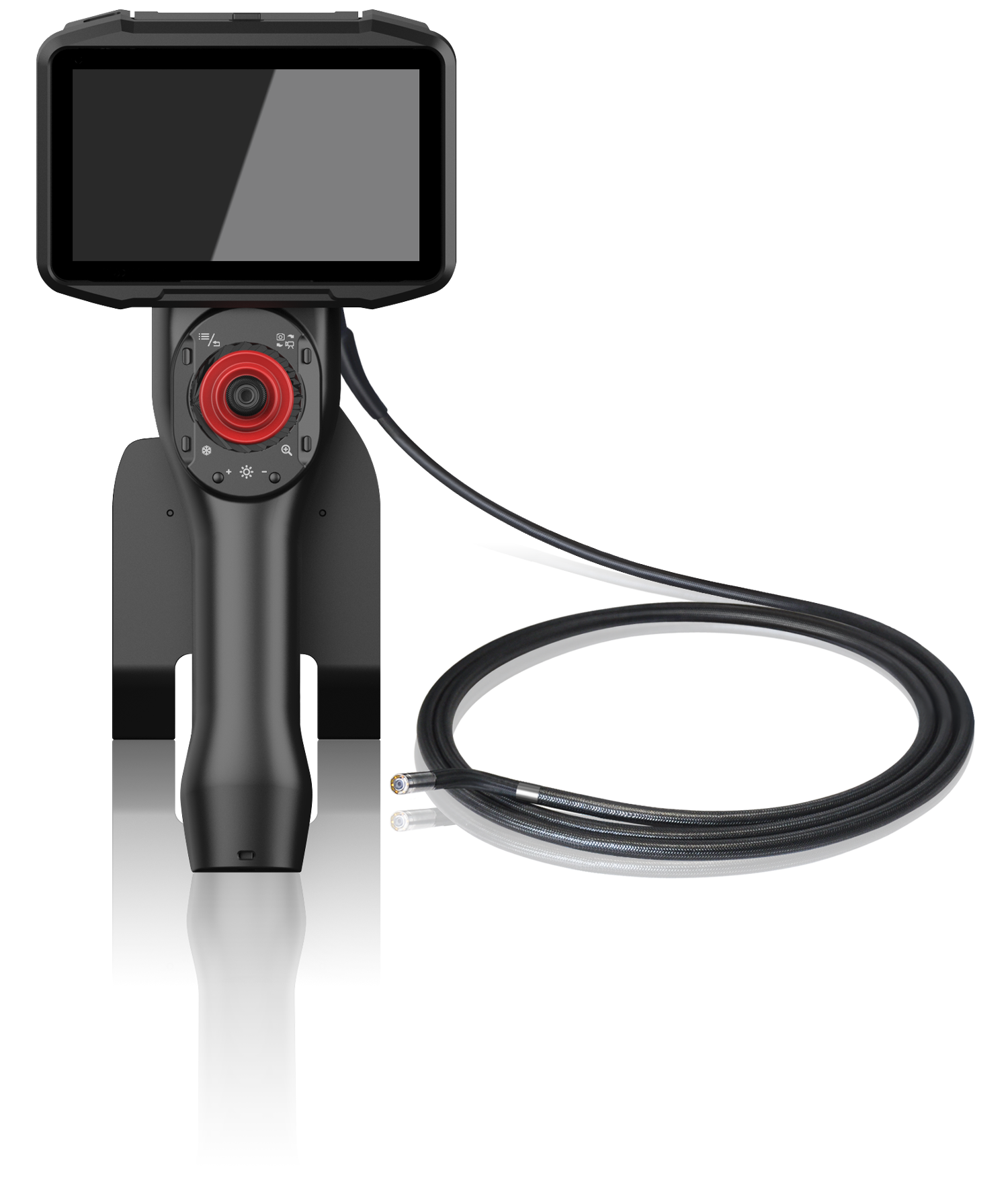

The X3 series is a high-performance, multi-purpose industrial videoscope independently developed by Coantec. It features a high-definition industrial camera and a 5.5-inch LCD touchscreen, delivering true-to-life colors and clearer inspection images.
With an optional high-frame-rate image sensor, the video playback is smoother, eliminating afterimages and frame stuttering. The handheld integrated design and mechanical control probe allow 360° flexible articulation in all directions.
The quick-release tube replacement mechanism enhances convenience, while interchangeable cameras and configurable lighting options—including white light, infrared light, and UV light—provide versatility for different inspection needs. The storage capacity can be expanded, and the battery life is significantly extended compared to previous models.
The X3 series is ideal for industries such as aviation, aerospace, automotive, railways, marine, energy, petrochemicals, power generation, military, and specialized inspections.
2.Powerful Performance

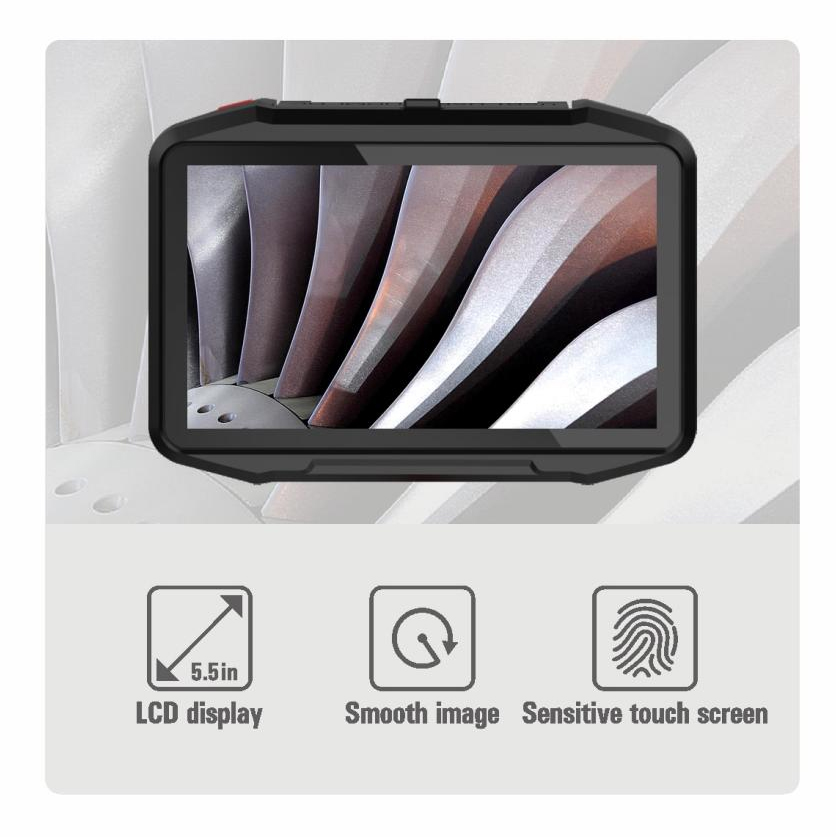

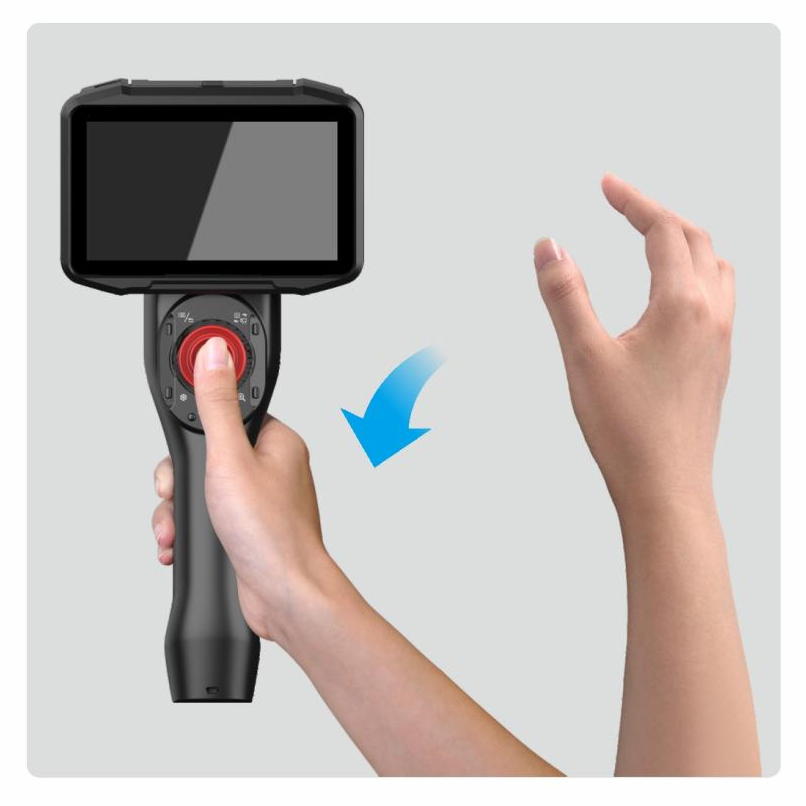

Mechanical Handheld Integrated Design The ergonomic handheld design ensures a comfortable grip for extended use. Featuring a mechanically controlled joystick, it offers precise probe articulation, responsive control with no delay, and an enhanced user experience. Lightweight and portable, it allows for quick and efficient inspections anytime, anywhere. | High-Quality NDT Imaging Equipped with a megapixel high-definition camera, a built-in high-sensitivity image sensor, and a 5.5-inch HD LCD touchscreen, this system delivers sharp, detailed images with smooth and true-to-life visuals. It enables precise detection of subtle surface defects inside equipment and components. |
|
|

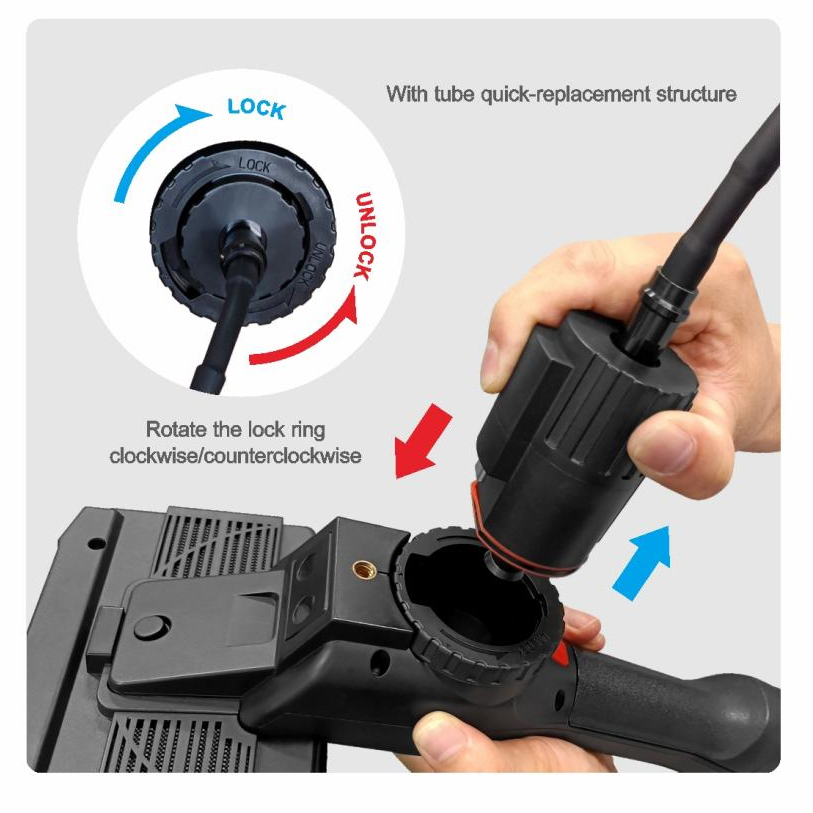

Compatible with Various Insertion Tube Specifications A single host can be paired with insertion tubes of different specifications, with customizable length, diameter, and lighting options to meet specific requirements. This flexibility helps optimize costs while ensuring adaptability for various inspection needs. | Quick-Release Tube Replacement Mechanism Featuring a quick-release design, the tube can be replaced effortlessly without disassembling the nut. Simply turn the lock ring clockwise or counterclockwise to lock or release the tube in just 3 seconds, ensuring fast and efficient replacement. |
|
|
Configurable with Multiple Lighting Sources Supports three auxiliary lighting options: infrared, white, and UV light. Two sources can be selected simultaneously (default: white and infrared light) to enhance illumination. The supplementary lighting improves visibility, ensuring higher-quality inspection images. | Interchangeable Camera Tips with Various Focus Options The system supports replaceable camera tips with different specifications, including forward-view, side-view, far-focus, close-focus, medium-focus, wide-angle, telephoto, and measurement cameras. This adaptability allows for inspection at varying distances, ensuring clearer and more precise imaging. |
|
|
Optional High-Frame-Rate Image Sensor With a faster response speed than standard image sensors, this option delivers smoother visuals while significantly reducing lag, afterimages, and jitter. It enhances the clarity of rotating or fast-moving objects, making inspections more precise and efficient. | Dual Power Supply for Extended Battery Life The system features a dual-engine power supply, combining a built-in high-capacity lithium polymer battery in the display and a replaceable backup battery in the handle. These batteries can charge each other, ensuring extended operation with a continuous working time of over 5 hours. |
|
|

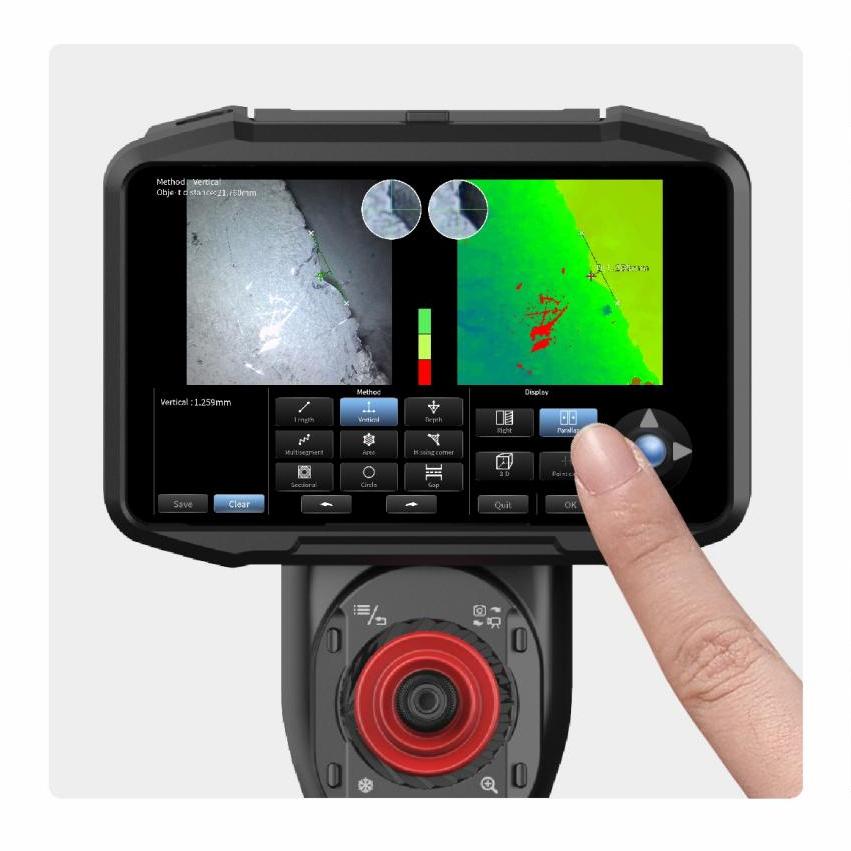

High-Precision 3D Measurement Function (Optional Advanced Configuration) The system can be upgraded to a 3D measurement system, compatible with 4mm, 6mm, and 8mm insertion tubes. It supports various measurement modes, including length, height, multi-segment, area, missing corner, sectional, circle, and gap measurements. With a measurement accuracy of 0.01mm and an error margin of ≤5% | Large-Capacity Storage The system features built-in high-capacity storage (standard 16GB, with optional 32GB or 64GB). Equipped with two USB ports, it allows for easy connection to external USB drives, ensuring quick and convenient data access. |
|
|
3.Technical Specifications
● Standard | X3 series (Standard） | |
Host system | ||
Display Type | LCD touch screen | |
Display Size | 5.5-inch | |
Display Resolution | 1280*720 | |
Display detachable | ● | |
User interface | Use the touch screen and physical buttons to navigate | |
Standard storage capacity | 16G | |
Expandable memory capacity | ● | |
Camera function | ● | |
Image storage format | JPG | |
Recording function | ● | |
Video storage format | MP4 | |
Live image magnification | 1-5 times (support multi-touch pinch gesture to zoom) | |
Adjustable LED brightness level | 0-9 levels | |
Image color adjustment | Adjust image brightness,contrast,hue,saturation,sharpness,gamma and restore default | |
Manual adjustment of display brightness | ● | |
Image mode | Default, monochrome, negative, bright ,highlighted, or soft | |
Image rotation | ● | |
Screen freeze | ● | |
Real-time image comparison | ● | |
Time watermark | ● | |
Report generation | ● | |
Cross scale guide | None, circular ruler, cross ruler, or reference line | |
Bluetooth data transmission | ● | |
WiFi data transmission | ● | |
Audio input and output | ● | |
File operations | View pictures in full screen/enlarge pictures/delete/rename/view file details,etc | |
Image zoom | 1-5 times zoom (support multi-touch pinch gesture zoom) | |
Photo edit | Text annotation and graffiti functions (handwritten lines,arrows,boxes,round signs,text annotation,and can set the brush color and thickness) | |
User permission management | Administrator, Visitors, Standard user (created by administrator) | |
Menu language/Language input method | Simplified Chinese,English,Japanese,Korean, | |
3D measurement system(optional) | 9 measurement methods: Length,Vertical,Depth,Multisegment，Area,Missing corner,Sectional,Circle and Gap. | |
Transport files through LAN | ● | |
Online upgrade | ● | |
Dust-proof and water-proof level（host） | IP55 | |
Output port | ||
HDMI video output port | ● | |
3.5mm audio output | ● | |
USB2.0 interface*2 | ● | |
Dimensions | ||
Host size | 295mm*145mm*163mm | |
Instrument case size | 551mm*351mm*240mm | |
Host weight | 1.3kg (eg:X3-6020,including battery and base） | |
Insertion tube | ||
Diameter (±0.1mm)and Length | 0.95mm | Tube length options:1m-2m |
1.2mm | ||
1.6mm | Tube length options:1m-3m | |
1.8mm | ||
2.0mm | ||
2.8mm | ||
3.0mm | ||
3.9mm | ||
4.8mm | ||
6mm | Tube length options:1m-10m | |
8mm | ||
Depth of Field | 5-50mm/ 5-100mm/ 10-100mm/ 50mm-infinity* | |
View angle | 70°/ 80°/ 100°/ 120°* | |
Camera pixels | 160,000/ 300,000/ 1000,000/ 2000,000* | |
Interchangeable tubes | ● | |
Interchangeable lens | ○ | |
Observation direction | Forward view/ Side view/ Dual view | |
Light source | White light/ Infrared/ Ultraviolet | |
Light source type | Front LED/ Rear-mounted LED+fiber light guiding | |
360°all way articulation | ● | |
Mechanical probe guide control | ● | |
Probe unidirectional bending angle | ≥160°(eg:for 6mm,1m tube)* | |
Probe material | Titanium alloy protective housing | |
Insertion tube material | Tungsten wire wear-resistant braided tube | |
Dust-proof and waterproof level | IP67 | |
Power supply | ||
INPUT | 220±10%V 50Hz | |
OUTPUT | 5V 3A | |
Host battery capacity (non-removable) | 7,4V 3000mAh | |
Handle battery capacity (removable) | 7.4V 3200mAh | |
Continuous working time | ≥6 hours | |
Operating environment | ||
System working temperature | -20-55°℃ | |
Tip working temperature | -20-85°℃ | |
Storage temperature | -20-60°℃ | |
Relative humidity | 15%-90% | |
Accessories | ||
Instrument case | ● | |
U disk | 32G | |
Power adapter | ● | |
Pipe centralizer | ○ | |
Rechargeable lithium battery | ○ | |
Battery charge | ○ | |
HDMI cable | ● | |
Base | ● | |
Customization | ||
Tube length, diameter, light source | ○ | |
Tube can be added with ruler scale | ○ | |
Software function | ○ | |
Lens | ○ | |
*The specific parameters are subject to the actual product. Please contact to the sales for confirmation. | ||
